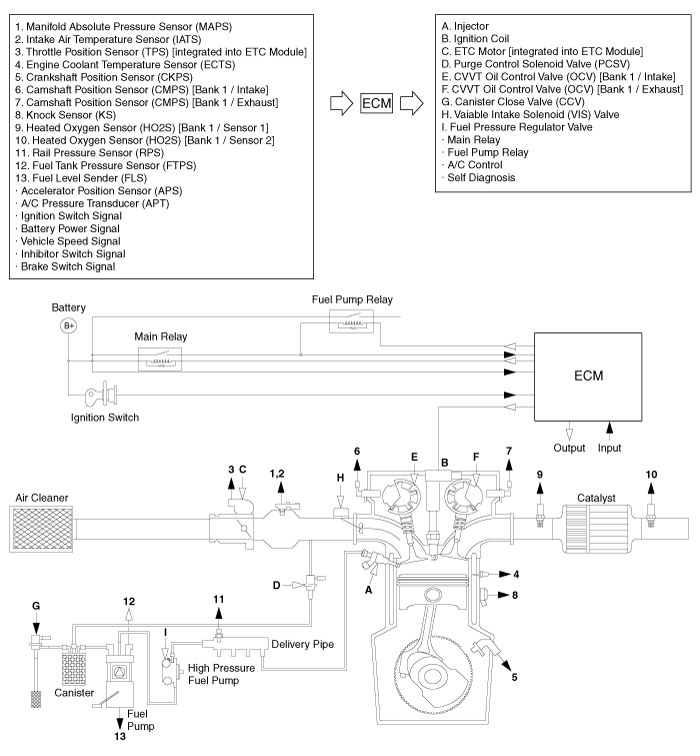

Kia Sorento: Schematic Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Emission Control System / Schematic Diagram
Troubleshooting
Symptom
Suspect area
Engine will not start or stuggle to start
Vapor hose damaged or disconnected
Engine stuggle to start
Malfunction of the Purge Contro...
Components Location
1. PCV Valve
2. Canister
3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)
5. Canister Close Valve (CCV)
6. Fuel Level Sender (FLS)
7. Fuel Tank Air Filt...
