Kia Sorento: Components Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AVN System / Components Location

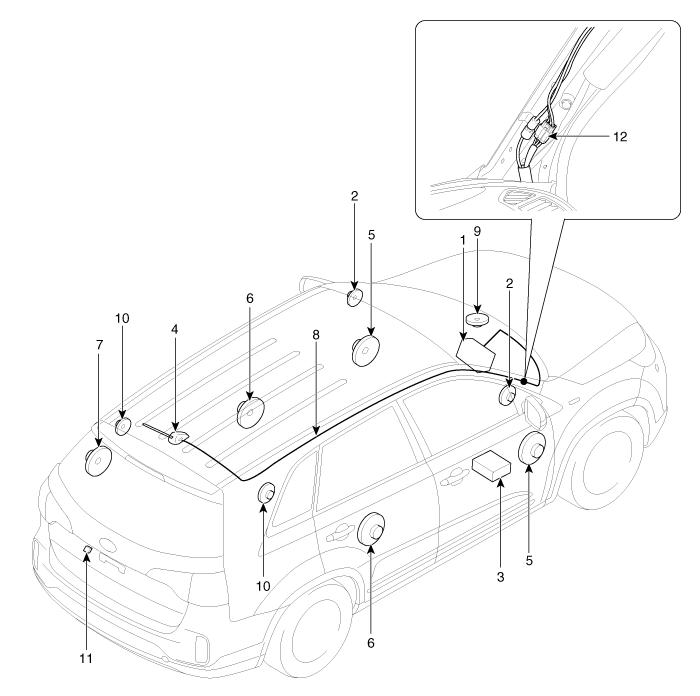

| 1. AVN (A/V & Navigation) head unit 2. Tweeter speaker 3. External amplifier 4. Roof antenna (Radio+Sirius+GPS) 5. Front door speaker 6. Rear door speaker |
7. Subwoofer speaker 8. Antenna feeder cable 9. Center speaker 10. Surround speaker (Option) 11. Back view camera 12. Feeder cable joint connector |
Item
Specification
Power source
DC 14.4V (-) ground
Frequency range / Channel space
FM : 87.5 ~ 107.9 MHz / 200 KHz
AM : 530 ~ 1710 KHz / 10 KHz
...
Specifications
System Block Diagram
