Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Components Location

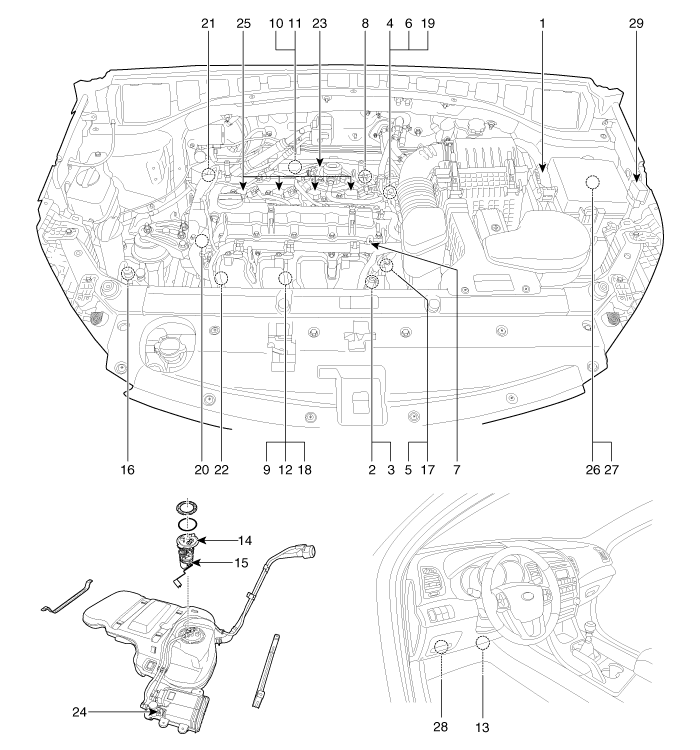

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
12. Rail Pressure Sensor (RPS)
13. Accelerator Position Sensor (APS)
14. Fuel Tank Pressure Sensor (FTPS)
15. Fuel Level Sender (FLS)
16. A/C Pressure Transducer (APT)
17. ETC Motor [integrated into ETC Module]
18. Injector
19. Purge Control Solenoid Valve (PCSV)
20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
22. Variable Intake Solenoid (VIS) Valve
23. Fuel Pressure Control Valve
24. Canister Close Valve (CCV)
25. Ignition Coil
26. Main Relay
27. Fuel Pump Relay
28. Data Link Connector (DLC) [16-Pin]
29. Multi-Purpose Check Connector [20-Pin]

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS)
16. ETC Motor

6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)

10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Rail Pressure Sensor (RPS)
18. Injector

13. Accelerator Position Sensor (APS)
14. Fuel Tank Pressure Sensor (FTPS)

15. Fuel Level Sender (FLS)
16. A/C Pressure Transducer (APT)

19. Purge Control Solenoid Valve (PCSV)
20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]

21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
22. Variable Intake Solenoid (VIS) Valve

23. Fuel Pressure Control Valve
24. Canister Close Valve (CCV)

25. Ignition Coil
26. Main Relay
27. Fuel Pump Relay
29. Multi-Purpose Check Connector [20-pin]

28. Data Link Connector (DLC) [16-Pin]
