Kia Sorento: Components Location
Kia Sorento (XM, 2011-2015) Service Manual / Suspension System / Front Suspension System / Components Location

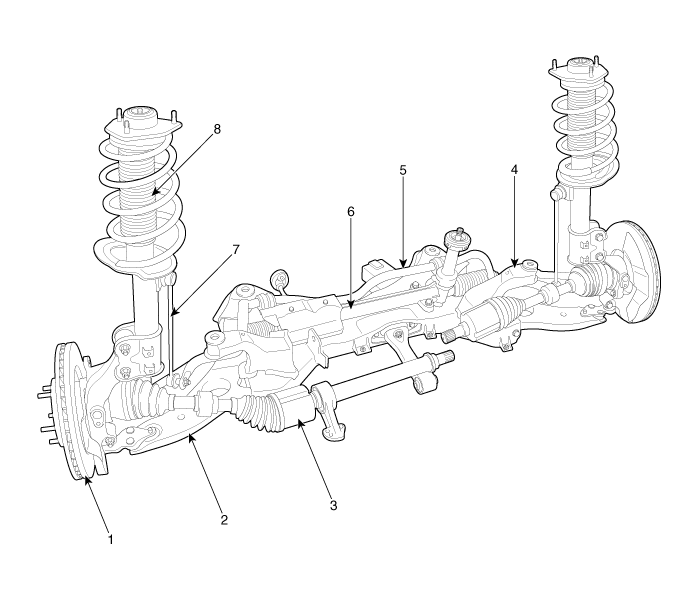

| 1. Front axle 2. Front lower arm 3. Drive shaft 4. Sub frame |
5. Stabilizer bar 6. Steering gearbox 7. Stabilizer link 8. Front strut assembly |
Front Suspension System
Front Strut Assembly Components
1. Strut assembly
2. Insulator
3. Bearing
4. Spring upper pad
5. Spring
6. Dust cover
7. Spring lower pad...
