Kia Sorento: Front Strut Assembly Components
Kia Sorento (XM, 2011-2015) Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components

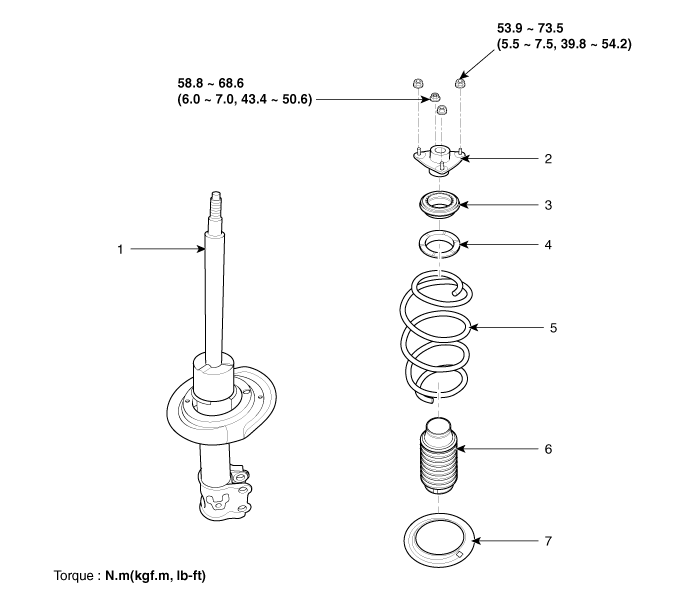

| 1. Strut assembly 2. Insulator 3. Bearing 4. Spring upper pad |
5. Spring 6. Dust cover 7. Spring lower pad |
1. Front axle
2. Front lower arm
3. Drive shaft
4. Sub frame
5. Stabilizer bar
6. Steering gearbox
7. Stabilizer link
8. Front strut assembly...
Components Location
1.
Remove the front wheel and tire (A) from front hub .
Tightening torque:
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)
...
Front Strut Assembly Removel
