Kia Sorento: Components Location
Kia Sorento (XM, 2011-2015) Service Manual / Restraint / Components Location

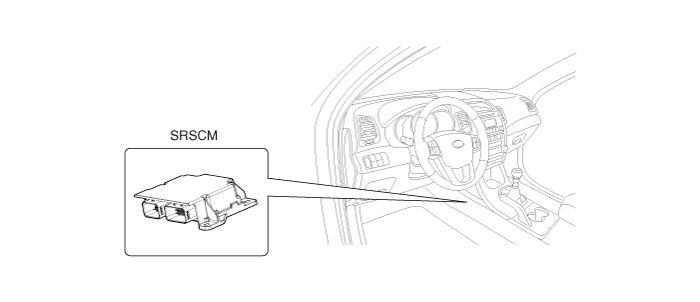

| Supplemental Restraint System Control Module (SRSCM) |

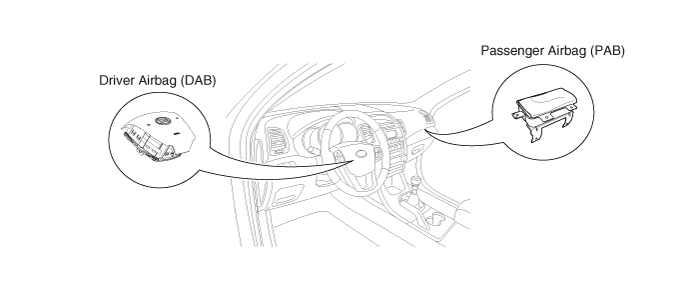

| Driver Airbag (DAB) / Passenger Airbag (PAB) |
| Side Airbag (SAB) |

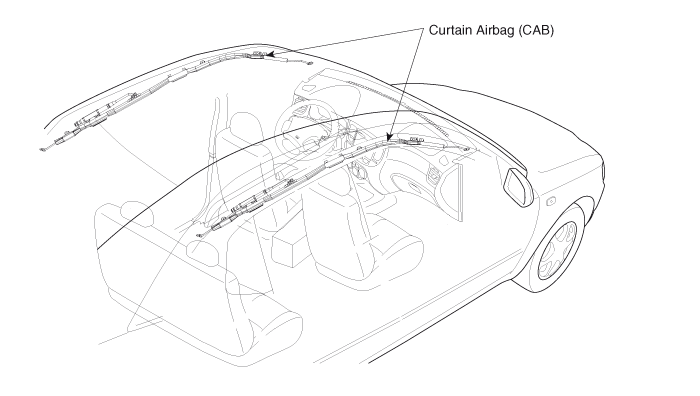

| Curtain Airbag (CAB) |
| Seat Belt Pretensioner (BPT) |
| Front Impact Sensor (FIS) |
| Side Impact Sensor (SIS) |
Components (1)
1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Front Side Impact Sensor (FSIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front...
SRSCM
...
