Kia Sorento: Condenser Replacement - Air conditioning System - Heating,Ventilation And Air ConditioningKia Sorento: Condenser Replacement

Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Condenser Replacement

1.
Recover the refrigerant with a recovery/recycling/charging station.
2.
Disconnect the negative (-) battery terminal.
3.
Remove the front bumper.
(Refer to Body - "Front Bumper")
4.
Remove the air duct (A).

5.
Remove the 2 nuts, and then disconnect the discharge line and liquid line (A) from the condenser.

6.
Remove the side air guard (A).

7.

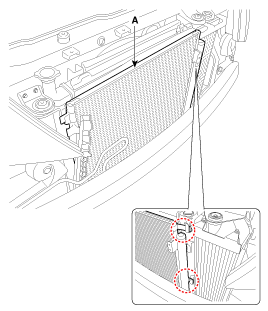

Remove the condenser (A) from radiator.

8.
Install in the reverse order of removal.

    1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers...
    1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with a L wrench (A). Tightening torqu...
