Kia Sorento: Cowl Top Cover Replacement - Exterior - Body (Interior and Exterior)Kia Sorento: Cowl Top Cover Replacement

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Cowl Top Cover Replacement

1.
Remove the cap (A) and remove the nuts, then remove the wiper arm (B).
Tightening torque :
22.6 ~ 26.5 N.m(2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft)

2.

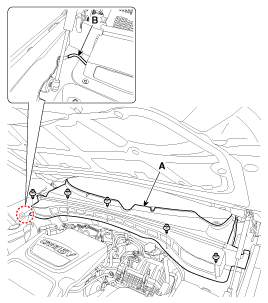

Disconnect the nozzle hose (B).
3.
Detach the clips, then remove the cowl top cover (A).
4.
Install in the reverse order of removal.
