Kia Sorento: Console Components - Exterior - Body (Interior and Exterior)Kia Sorento: Console Components

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Console Components

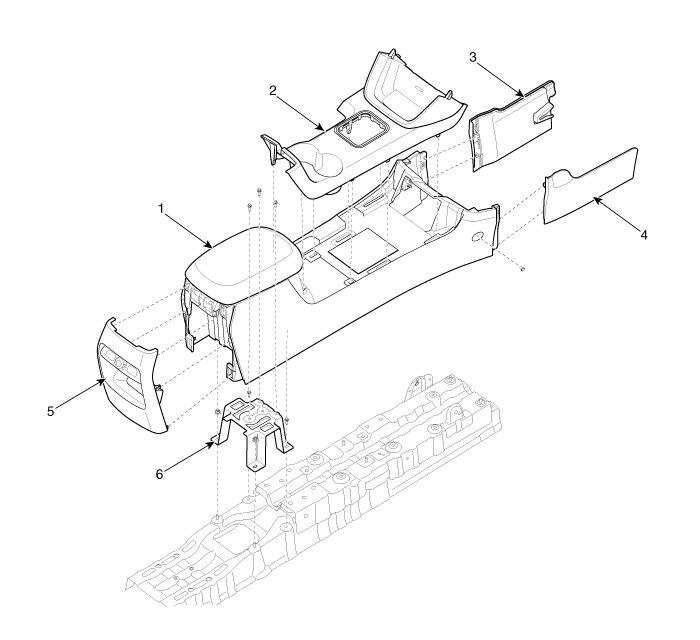

[M/T]

1. Floor console assembly
2. Console upper cover
3. Console side cover [LH]
 4. Console side cover [RH]
5. Rear console cover
6. Floor console mounting bracket

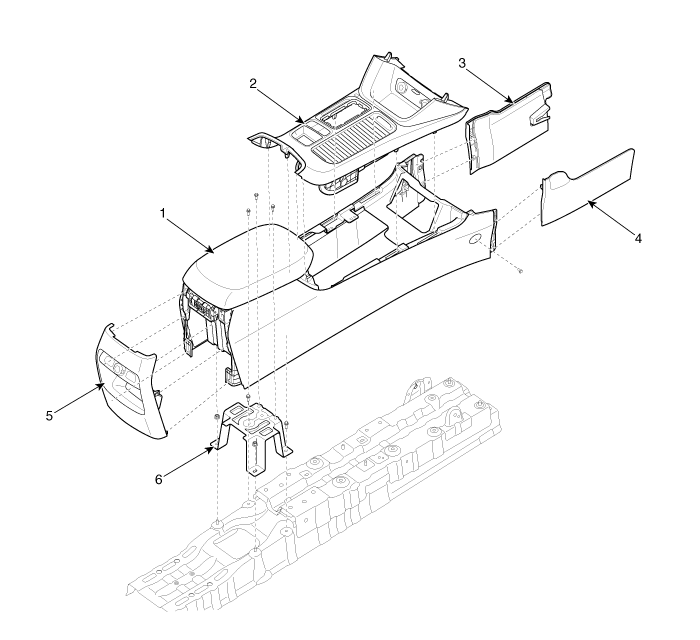

[A/T]

1. Floor console assembly
2. Console upper cover
3. Console side cover [LH]
 4. Console side cover [RH]
5. Rear console cover
6. Floor console mounting bracket
