Kia Sorento: Description - AC Inverter System - Body Electrical SystemKia Sorento: Description

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AC Inverter System / Description

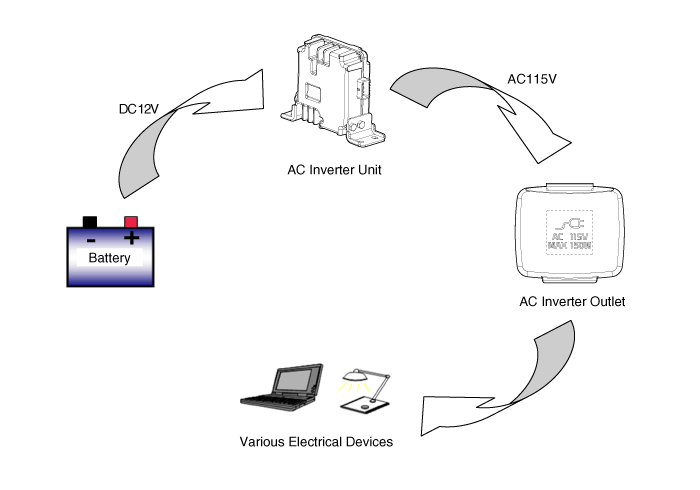

An inverter is a device that transforms the DC voltage from the battery into an AC voltage (115 V). The inverter can power various electrical devices that consume 150 W or less, including mobile phone or notebook rechargers, audio systems, and TVs.

Inverter system Protection Function
Item
 Condition
 LED Status
Undervoltage protection
 Shuts down for safety at voltages lower than 11.3 V
    Component Location
    1. Battery 2. AC inverter switch 3. AC inverter unit 4. AC inverter outlet...
    AC Inverter Unit Components
    ...
