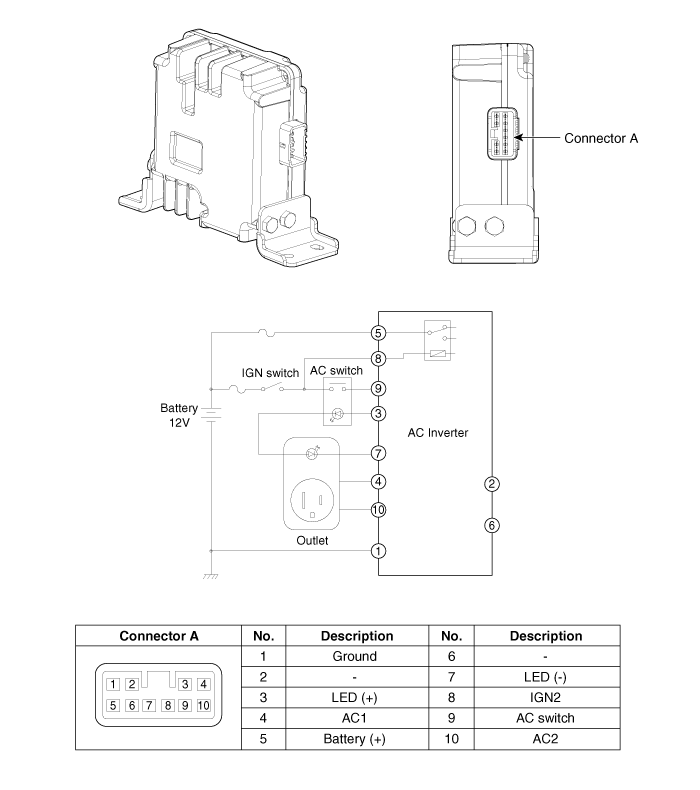

Kia Sorento: AC Inverter Unit Components
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AC Inverter System / AC Inverter Unit Components
An inverter is a device that transforms the DC voltage from the battery
into an AC voltage (115 V). The inverter can power various electrical devices
that consume 150 W or less, including mobile...
Description
1.
Disconnect the negative (-) battery terminal.
2.
Remove the right luggage side trim.
(Refer to Body - "Luggage Side Trim")
...
AC Inverter Unit Removal
