Kia Sorento: Engine compartment

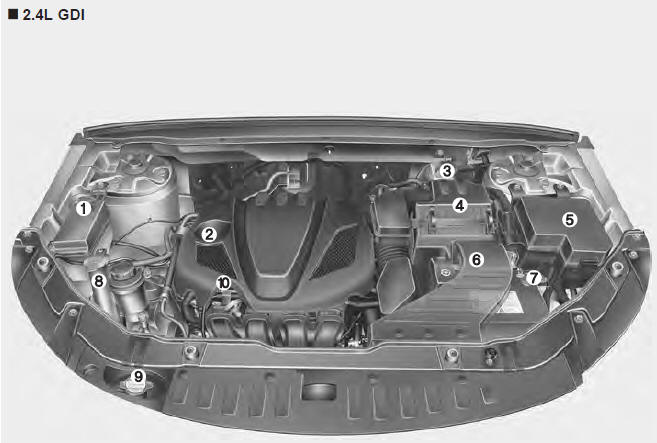

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick

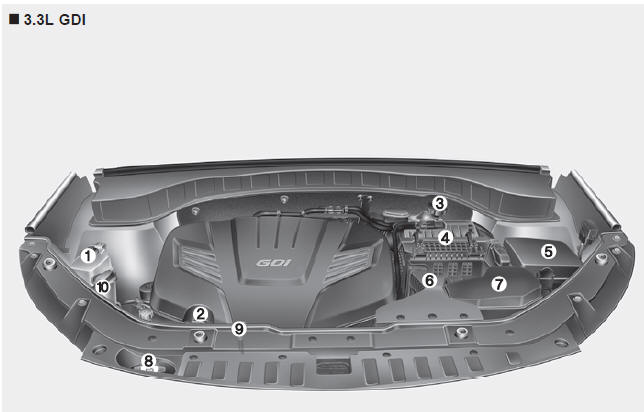

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
Fuel Pump & Tube Assembly Components and Components Location
Components
1. Clip2. Stopper3. Plate Assembly4.
O-Ring5. Fuel Sender Assembly6. Reservoir Cup7. Clip8. Fuel Pressure Regulator
9. F ...
