Kia Sorento: Front Body D - Body Dimensions - Body (Interior and Exterior)Kia Sorento: Front Body D

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body D

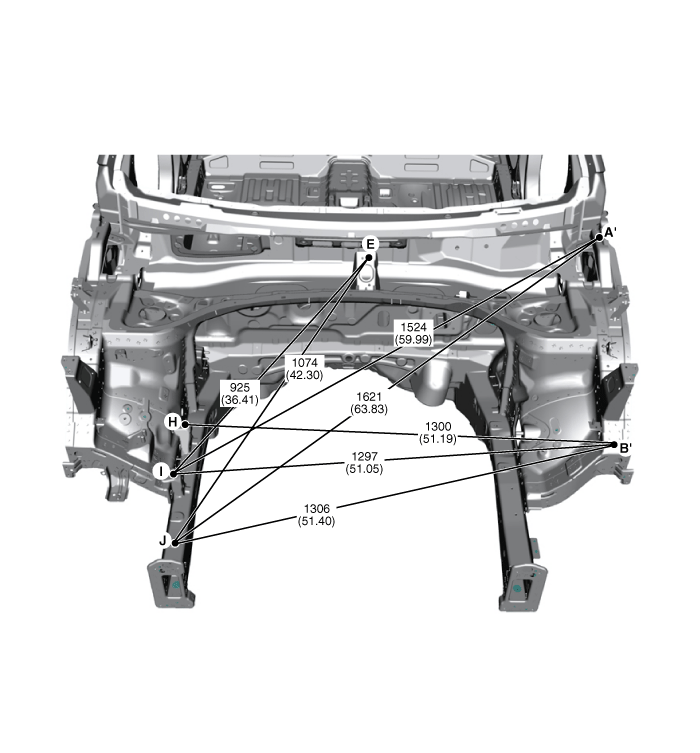

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
