Kia Sorento: Front Body E - Body Dimensions - Body (Interior and Exterior)Kia Sorento: Front Body E

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body E

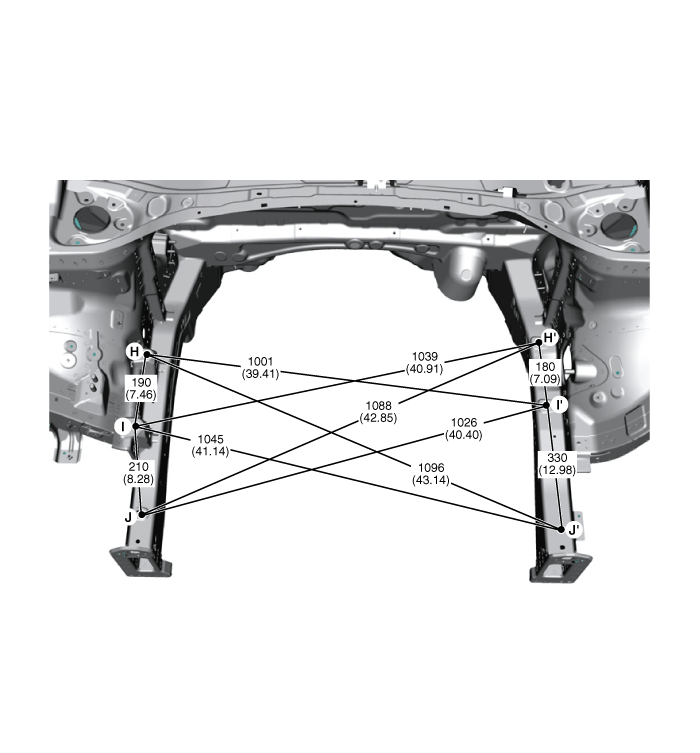

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Hood hinge mounting hole (Ø11)

Fender apron upper panel corner

Fender apron upper panel tooling hole
(7X12)

Fender panel mounting hole (Ø9)

Front shock absorber mounting hole
(Ø13)
Cowl panel tooling hole (Ø6.6)

Front pillar outer corner

Front pillar outer corner

Engine mounting bracket hole (Ø13)

Transaxle mounting hole (Ø15)

Engine mounting bracket hole (Ø13)

Transaxle mounting hole (Ø15)


Front side member tooling hole (Ø11)

Front side member tooling hole (Ø11)

Front end module mounting hole (Ø13)



Front end module mounting hole (Ø9)
