Kia Sorento: Front Disc Brake Components
Kia Sorento (XM, 2011-2015) Service Manual / Brake System / Brake System / Front Disc Brake Components

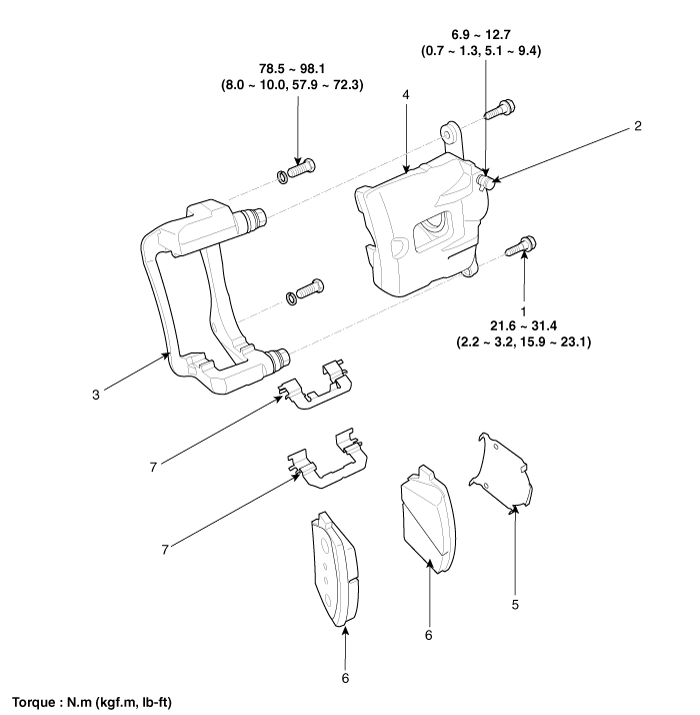

| 1. Guide rod bolt 2. Bleed screw 3. Caliper carrier 4. Caliper body |
5. Inner pad shim 6. Brake pad 7. Pad retainer |
Brake Pedal Adjustment
Brake Pedal Height and Free Play
1.
Disconnect the stop lamp switch connector (A) and loosen the stop
lamp switch lock nut.
2.
...
Front Disc Brake Removal
1.
Remove the front wheel & tire.
Tightening torque:
88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft)
2.
...
