Kia Sorento: Front Hub / Knuckle / Tone Wheel Components - Front Axle Assembly - Driveshaft and axleKia Sorento: Front Hub / Knuckle / Tone Wheel Components

Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components

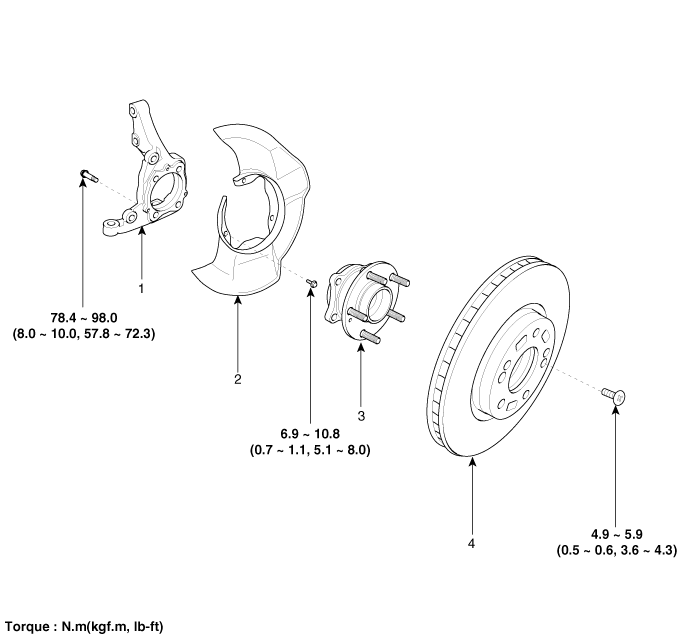

1. Knuckle
2. Dust cover
3. Hub assembly
4. Brake disc
