Kia Sorento: Front Seat Replaccement - Seat & Power Seat - Body (Interior and Exterior)Kia Sorento: Front Seat Replaccement

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Seat & Power Seat / Front Seat Replaccement

Seat Assembly Replacement
1.

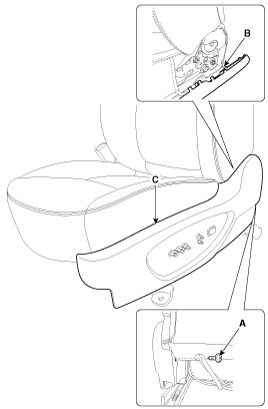

Remove the seat assembly mounting cover.
2.
After loosening the seat assembly mounting bolts, remove the seat assembly (A).
Tightening torque :
44.1 ~ 58.8N.m (4.5 ~ 6.0Kgf.m, 32.5~43.4lb-ft)

3.
Disconnect the power seat connector (A), airbag connector (B), seat belt buckle connector (C).
[Driver's]

[Passenger's]
4.
Install in the reverse order of removal.

SEAT MOUNTING BOLT INSTALLATION PROCEDURE
    Rear Seat Assembly Replacement [Second row seat assembly] 1. Push the second row seat assembly [RH] (A) towards the front of the vehicle as far as possible. ...
