Kia Sorento: Hazard Lamp Switch Inspection
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch Inspection
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of IPM with GDS quickly. GDS
can operates actuator forcefully, input/output value monitoring and
self diagnosis.
|
| 2. |

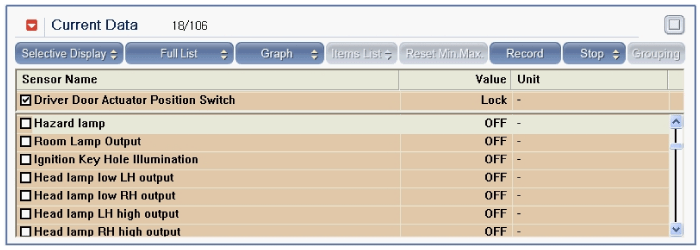

Select "Current data", if you will check current data of hazard
switch.
|
| 3. |

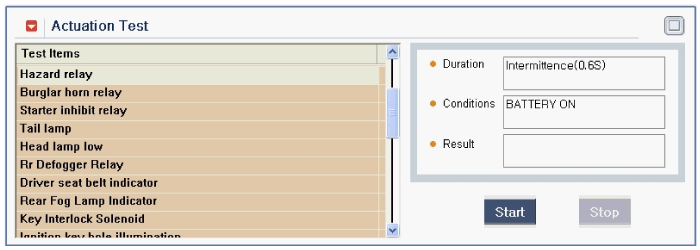

If you will check the hazard switch operation forcefully, select
"Actuation test".
|
