Kia Sorento: Heated Steering wheel Description
Kia Sorento (XM, 2011-2015) Service Manual / Steering System / Steering wheel / Heated Steering wheel Description
Heated pads to grip the steering grip makes the fever.
| 1. |
Heated control unit
|
| 2. |

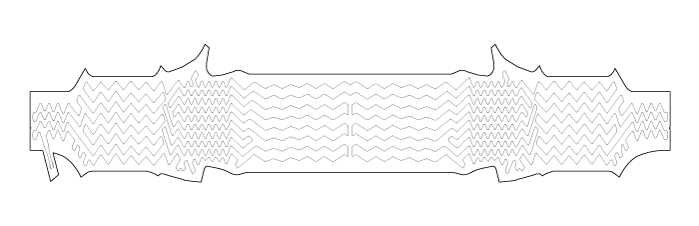

Heated pad
Specifications
|
Disassembly
1.
Remove the steering wheel cover (B) after loosening the screw
(A-6ea).
2.
Disconnect the streeing wheel remote control switch conne...
Heated Steering wheel System Circuit Diagram
Terminal Function
Housing
Pin
Function
Wire color
Pad
A
GND
Back
B
HEATER
Yellow
C
NTC+
...
