Kia Sorento: Heater Unit Components
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Heater / Heater Unit Components

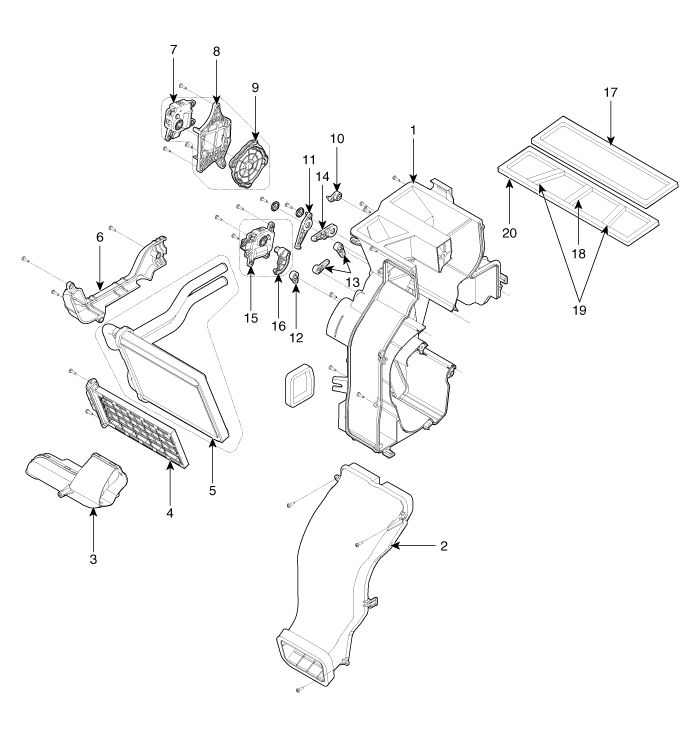

| 1. Heater Case 2. B Pillar Case 3. Shower Duct 4. PTC Heater 5. Heater Core |
6. Heater Core Cover 7. Mode Actuator 8. Mode Bracket 9. Mode Lever Main 10. Def Door Lever |
11. Foot Sub Lever 12. Temperature Door Lever 13. Vent/Foot Door Lever 14. Vent Sub Lever 15. Temperature Control Actuator |
16. Temperature Door 17. Duct Seal (A) 18. Duct Seal (C) 19. Duct Seal (D) 20. Duct Seal (B) |

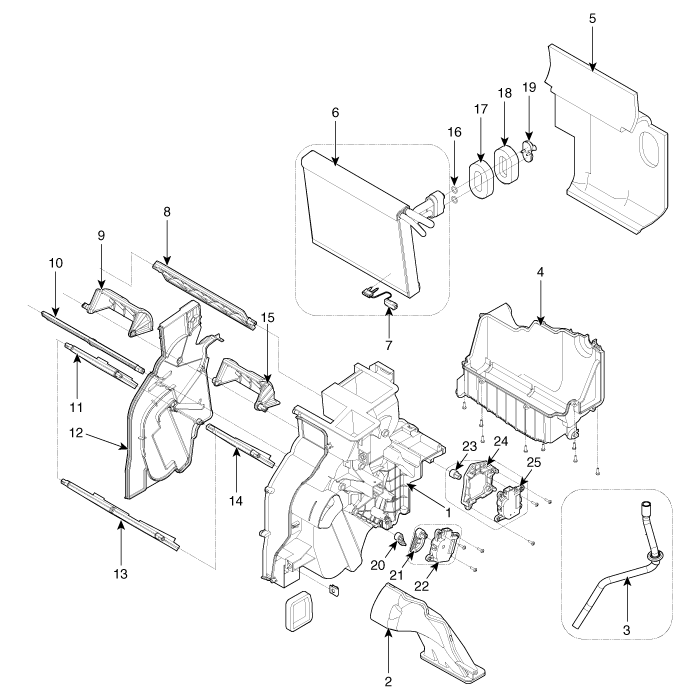

| 1. Heater Case 2. Shower Duct 3. Drain Hose 4. Lower Heater Case 5. NHV Pad 6. Evaporator Core 7. Evaporator Temperature Sensor 8. Def Door 9. Vent Door (LH) |
10. Foot Door 11. Temperature Door (LH) 12. Blind Case 13. Temperature Door (Main) 14. Temperature Door (RH) 15. Vent Door (RH) 16. O-Ring 17. Flange Seal |
18. Flange Seal 19. Flange Cap 20. Temperature Control Actuator Lever 21. Temperature Lever (RH) 22. Temperature Control Actuator 23. Def Lever 24. Def Bracket 25. Auto Defogging Actuator |
Heater Unit Component Location
Heater Unit Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/recycling/charging station.
3.
...
