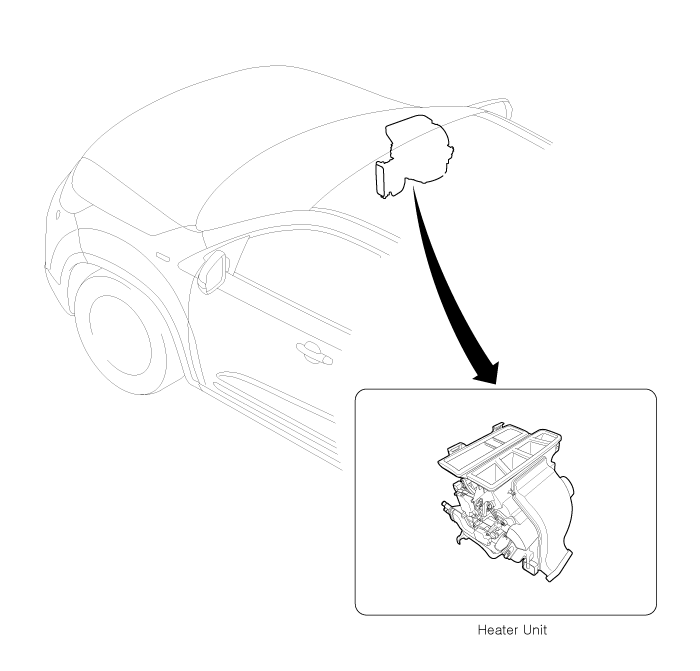

Kia Sorento: Heater Unit Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Heater / Heater Unit Component Location
Heater
...
Heater Unit Components
1. Heater Case
2. B Pillar Case
3. Shower Duct
4. PTC Heater
5. Heater Core
6. Heater Core Cover
7. Mode Actuator
8. Mode Bracket
9. Mode Lever Main
10. Def Door Lever
...
