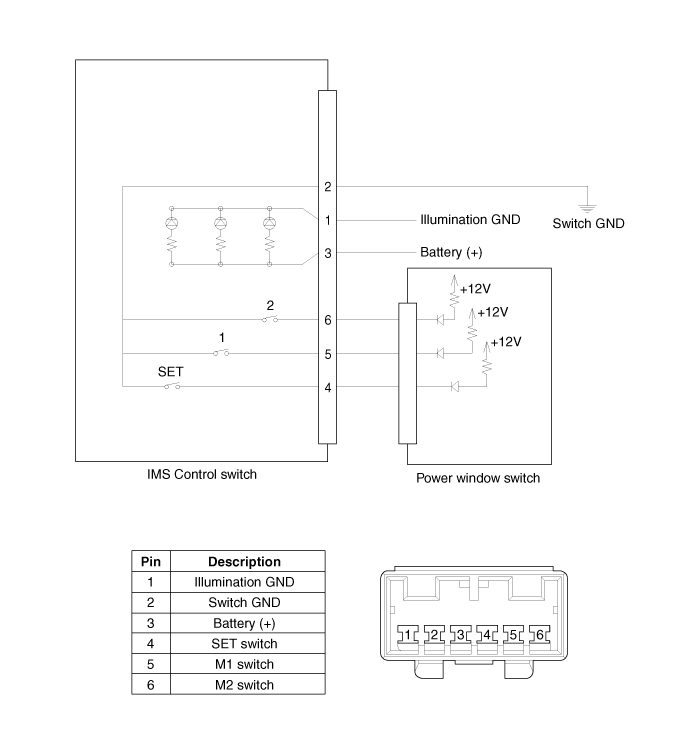

Kia Sorento: IMS Control Switch Circuit Diagram - IMS (Integrated Memory) - Body Electrical SystemKia Sorento: IMS Control Switch Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Control Switch Circuit Diagram
