Kia Sorento: IMS Power Seat Control Inspection
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Inspection
| 1. |

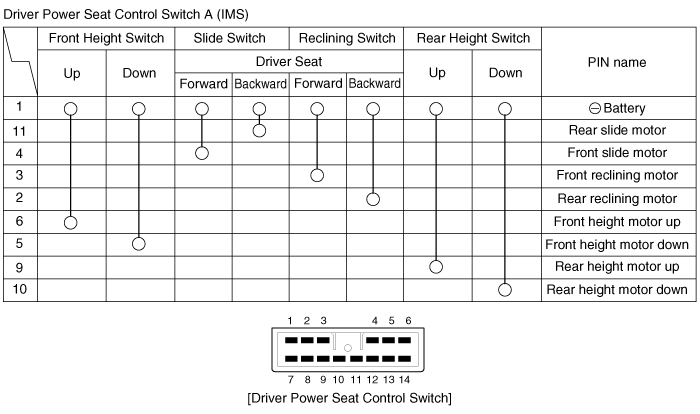

With the power seat switch in each position, make sure that continuity
exists between the terminals below. If continuity is not as specified,
replace the power seat switch.
|
IMS Power Seat Control Circuit Diagram
1.
Disconnect the negative (-) battery terminal.
2.
Remove the power seat control switch connectors (A).
(Refer to Body - "Front seat")
...
IMS Power Seat Control Removal
