Kia Sorento: IMS Power Seat Control Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Circuit Diagram
IMS module Installation
1.
Install the IMS module after reconnecting the connector.
2.
Install the driver seat.
...
IMS Power Seat Control Inspection
1.

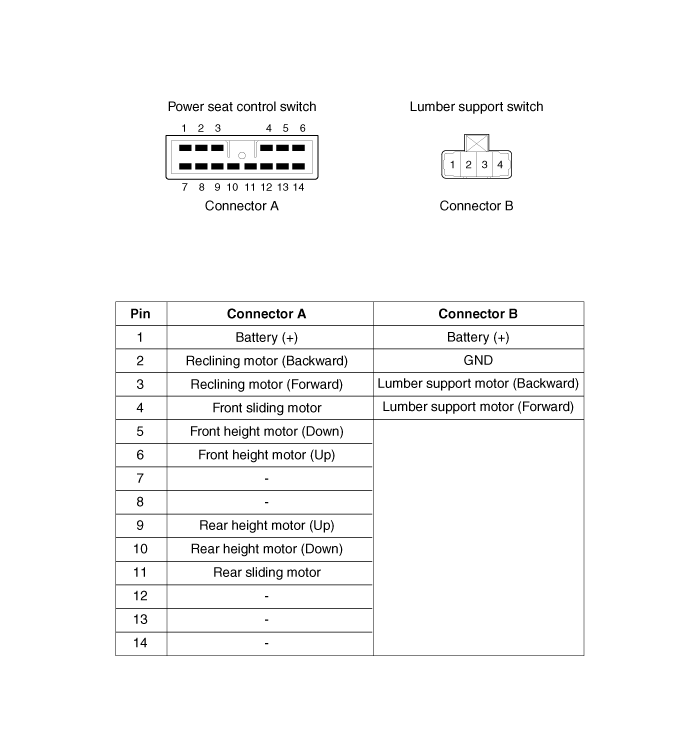

With the power seat switch in each position, make sure that continuity
exists between the terminals below. If continuity is not as specified,
replace the power seat switch....
