Kia Sorento: Inspection (With GDS)
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Multifunction switch / Inspection (With GDS)
| 1. |
Check IPM input/output specification of multifunction switch using
the GDS. If the specification is abnormal, replace the lamp or wiper
switch.
|
| 2. |

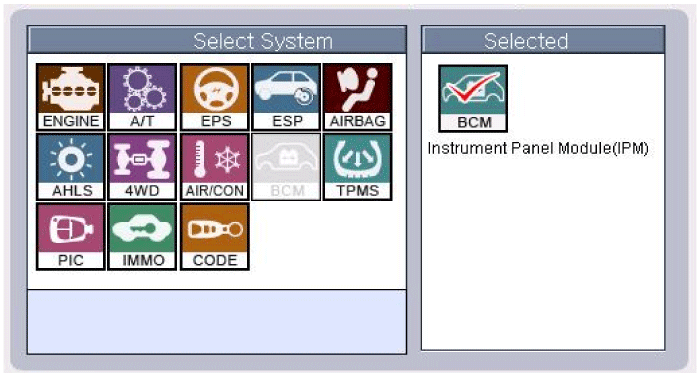

If diagnosis is required on the multifunction switch, select model
and "IPM".
|
| 3. |

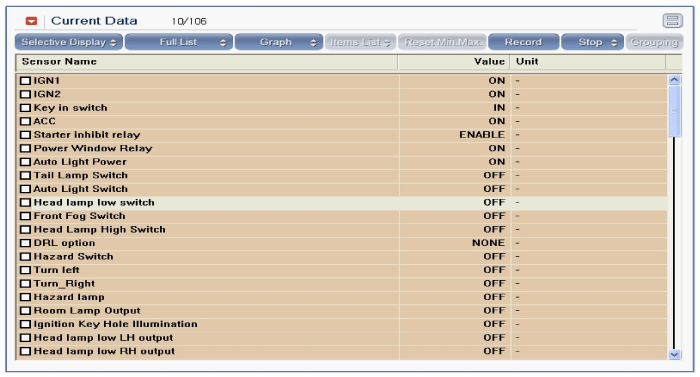

Select "Current data" and check the input/output condition of
"Multifunction switch".
|
| 4. |

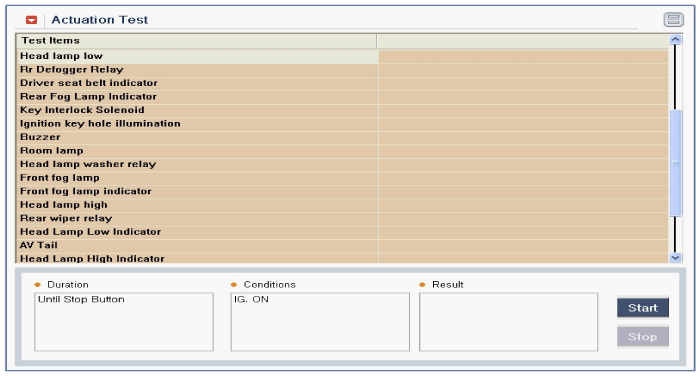

To perform test on "Multifunction switch" outputs, select "Actuation
test".
|
