Kia Sorento: Installation

Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Automatic Transaxle / Installation

1.

Install in the reverse order of removal.

If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit.

When installing the new oil seal, use the specialized tool.

2WD both side: 09453-3L240

4WD transaxle case side: 09453-3L240

4WD transaxle housing side : 09453-2W100

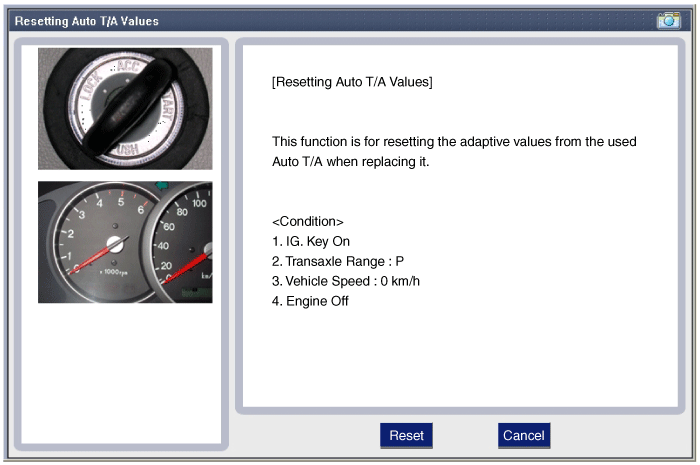

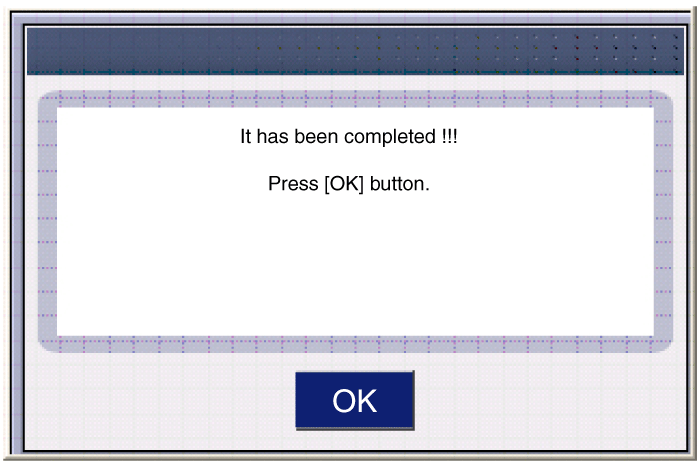

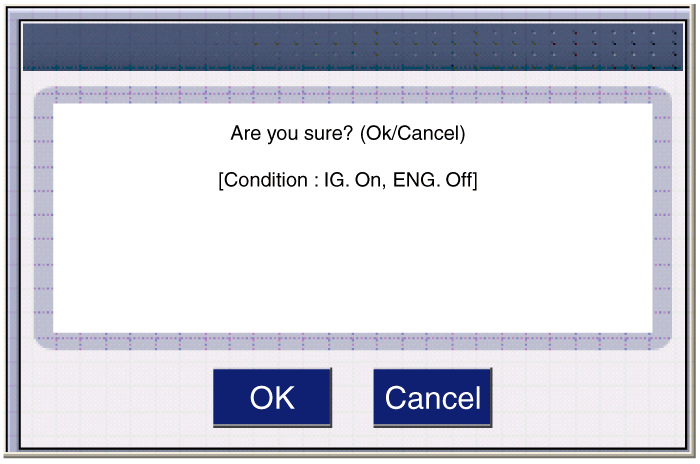

After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
