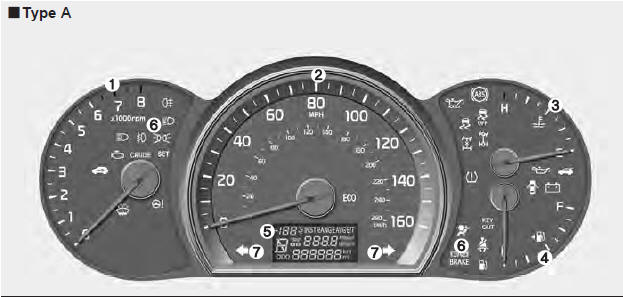

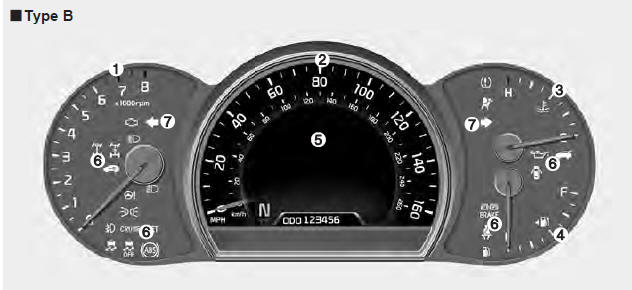

Kia Sorento: Instrument cluster
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights (if equipped)
7. Turn signal indicator lights
Instrument Cluster Control

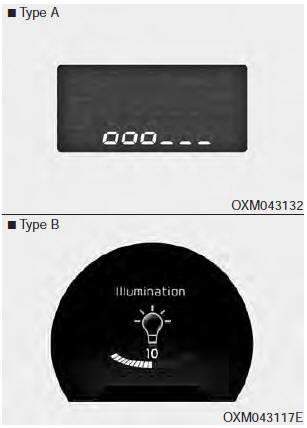

Adjusting Instrument Cluster Illumination (if equipped)

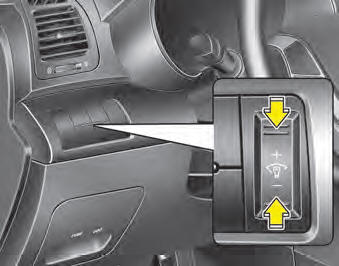

The brightness of the instrument panel illumination is changed by pressing the illumination control button ("+" or "-") when the ignition switch or Engine Start/Stop button is ON, or the tale lights are turned on.
- If you hold the illumination control button ("+" or "-"), the brightness will be changed continuously.
- If the brightness reaches to the maximum or minimum level, an alarm will sound.
Erasing programmed HomeLink buttons
To erase the three programmed buttons (individual buttons cannot be erased):
Press and hold the left and center buttons simultaneously, until the indicator
light begins to flash (approximately 20 se...
LCD Display Control
The LCD display modes can be changed by using the control buttons on the steering
wheel.
[Type A]
(1) :
TRIP button for changing trip modes
(2) :
RESET button for resetting items
...
