Kia Sorento: Intake Manifold Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Intake And Exhaust System / Intake Manifold Components

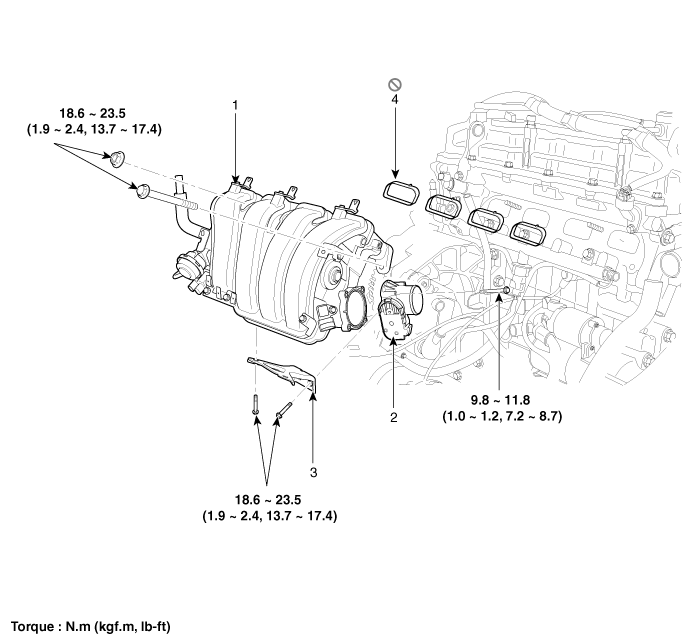

| 1. Intake manifold assembly 2. Electronic throttle body |
3. Intake manifold stay 4. Intake manifold gasket |
1.
Remove the engine cover.
2.
Remove the air duct (A).
3.
Remove the battery.
(Refer to Engine Electric...
Air Cleaner Removal and Installation
1.
Disconnect the battery negative terminal.
2.
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "Air Cleaner")
...
Intake Manifold Removal and Installation
