Kia Sorento: Interior D
| * These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
| Front pillar trim mounting hole (Ø8.5) |
Front pillar trim mounting hole (Ø8.5) |
Cowl crossbar mounting hole (Ø9) |
|
|
|
|
| Front door checker mounting hole (Ø11) |
Cowl side trim mounting hole (Ø8.5) |
1st Seat belt height adjust upper mounting hole (Ø15) |
|
|
|
|
| 1st Seat belt height adjust lower mounting hole (Ø15) |
Rear door checker mounting hole (Ø11) |
1st seat belt pretensioner mounting hole (Ø12.2) |
|
|
|
|
| Curtain airbag mounting hole (Ø6.6) |
2nd seat belt upper mounting hole (Ø15) |
Rear door striker mounting hole (Ø13) |
|
|
|
|
| 2nd seat belt pretensioner mounting hole (Ø15) |
2nd seat belt lower anchor mounting hole (Ø15) |
Curtain airbag mounting hole (Ø6.6) |
|
|
|
|
| Quarter inner panel tooling hole (Ø15) |
Quarter inner panel trim mounting hole (Ø6.6) |
Luggage side trim mounting hole (Ø8.5) |
|
|
|
|
| Parking brake lever mounting hole (Ø9) |
Side sill inner reinforcement tooling hole (Ø7) |
1st seat mounting hole (Ø13.3) |
|
|
|
|
| 2nd seat mounting hole (Ø11) |
Floor wiring harness mounting hole (12X7) |
Rear floor panel tooling hole (Ø16) |
|
|
|
|
| Rear floor panel tooling hole (Ø15) |
Tail gate striker mounting hole (Ø13) |
Interior C
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ]...

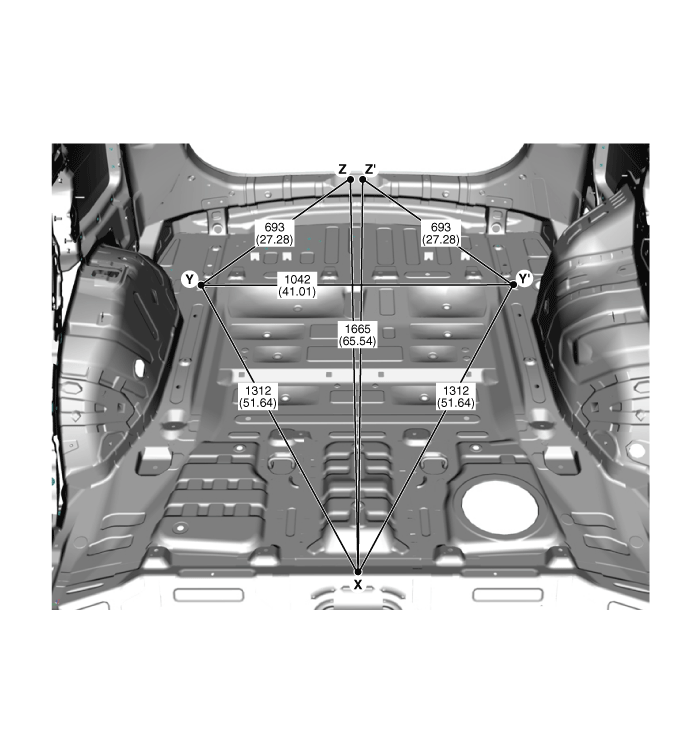

Rear Body
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ]
Side outer panel rear c...
See also:
Emergency Fastening Device (EFD) Description
Emergency Fastening Device (EFD) operates as well as Belt Pretensioner
at the same time If it gets into its deploy condition after a collision. It
is located at near anchor on driver and pass ...
