Kia Sorento: Rear Body

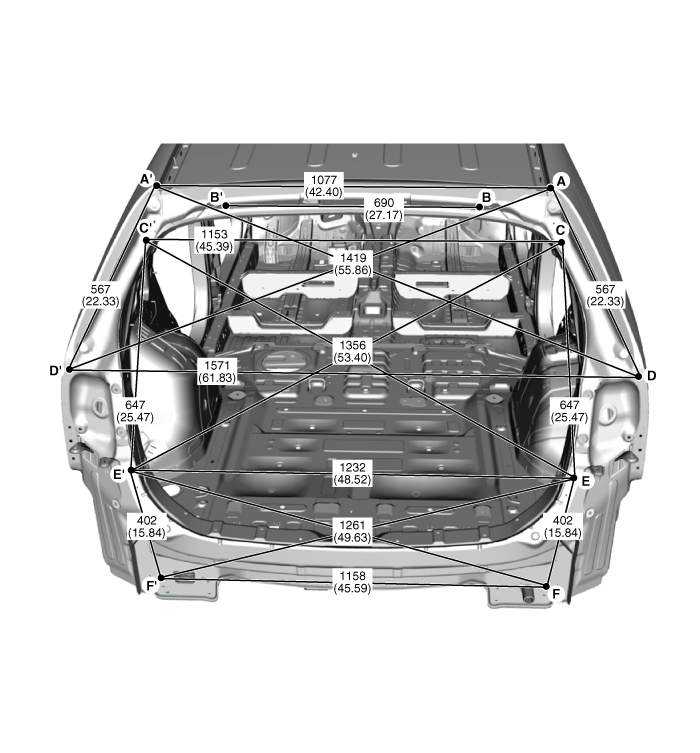

| * These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
| Side outer panel rear corner |
Tail gate hinge mounting hole (Ø12) |
Tail gate lifter mounting hole (Ø11) |
|
|
|
|
| Rear combination lamp mounting hole (Ø8) |
Rear bumper mounting hole (Ø9) |
Rear bumper mounting hole (20X18) |
|
|
||
| Rear bumper mounting hole (20X18) |
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ]
Front pillar trim mount...
Interior D
Projected Dimensions
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ]
Actual-Measurement Dimensions
...
Under Body (2WD)
