Kia Sorento: Master Cylinder Components
Kia Sorento (XM, 2011-2015) Service Manual / Brake System / Brake System / Master Cylinder Components

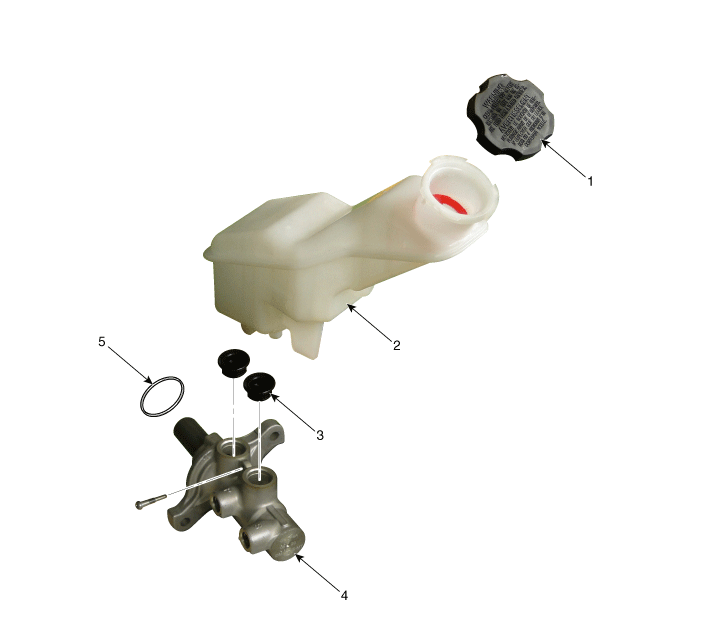

| 1. Reservoir cap 2. Reservoir |
3. Grommet 4. Master cylinder |
1.
Installation is the reverse of removal.
...
Brake Booster Installation
1.
Turm ignition switch OFF and disconnect the negative (-) battery
cable.
2.
Remove the air cleaner assembly.
G 2.4 GDI (Refer to Engine Mech...
Master Cylinder Removal
