Kia Sorento: Muffler Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Components

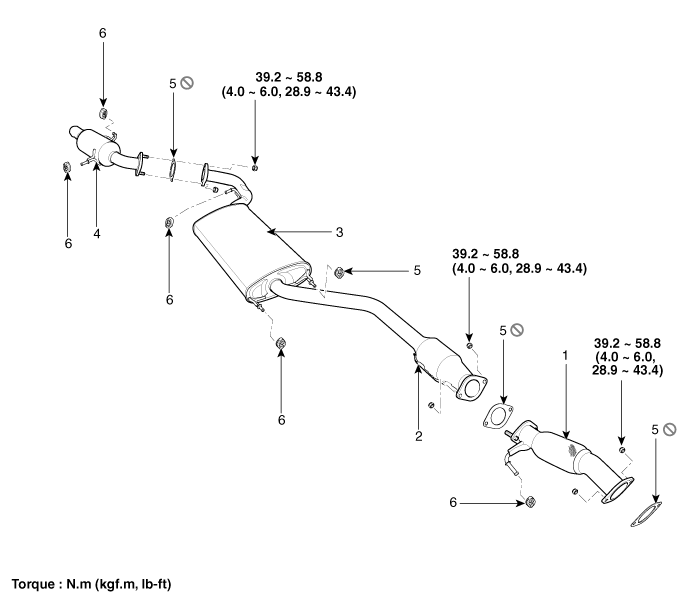

| 1. Front muffler 2. Catalytic converter 3. Center muffler |
4. Main muffler 5. Gasket 6. Hanger |
Exhaust Manifold Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal.
3.
Disconnect the front oxygen sensor connector (...
Muffler Removal and Installation
1.
Remove the front muffler (A) after loosening the mounting nuts.
Tightening torque:
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
...
