Kia Sorento: Panorama Sunroof Components
Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Panorama Sunroof Components

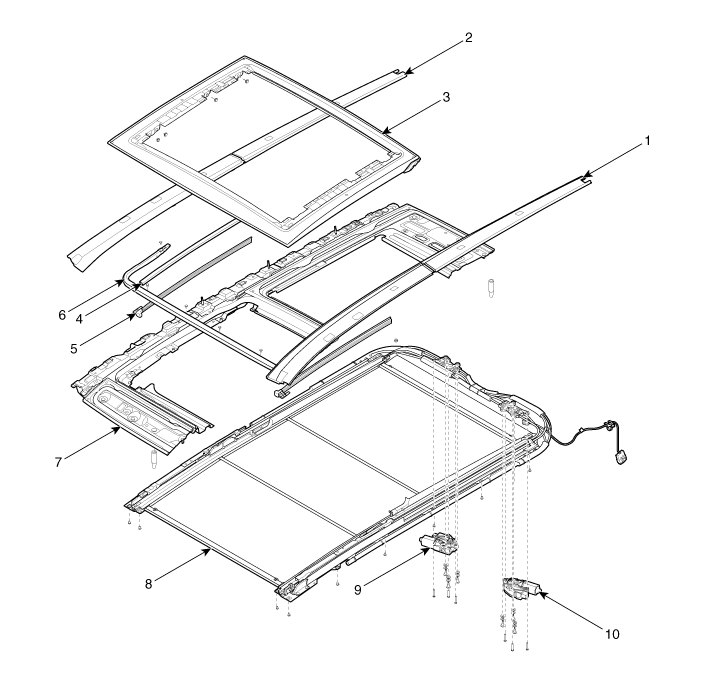

| 1. Roof side moulding [LH] 2. Roof side moulding [RH] 3. Movable glass 4. Slide 5. Cover base |
6. Wind deflector 7. Panorama sunroof frame assembly 8. Mechanism rail assembly 9. Glass motor assembly 10. Roller blind motor assembly |
Roof mouldingmoulding mouldingReplacement
[General Type]
...
Body Side Moulding Replacement
Movable Glass Replacement
1.
Tilt the rear part of the movable glass (A) using the panorama
sunroof switch.
2.
Remove both sides o...
Panorama Sunroof Replacement
