Kia Sorento: Panorama Sunroof Replacement
Movable Glass Replacement
|
1. |
Tilt the rear part of the movable glass (A) using the panorama
sunroof switch.
|
|
2. |
Remove both sides of the decoration cover (A).
|
|
3. |

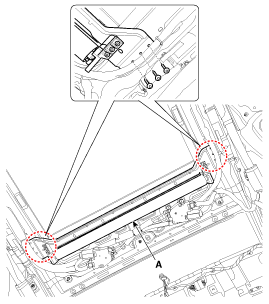

Loosen the mounting screws (A) on both sides.
|
1. Roof side moulding [LH]
2. Roof side moulding [RH]
3. Movable glass
4. Slide
5. Cover base
6. Wind deflector
7. Panorama sunroof frame assembly
8. Mechanism rail assembly
...
Inspect Glass Alignment
1.
Inspect the alignment of the movable glass (C) that is between
the front (A) and rear (B) glass and if needed adjust it.
...
