Kia Sorento: Piston and Connecting Rod Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cylinder Block / Piston and Connecting Rod Components

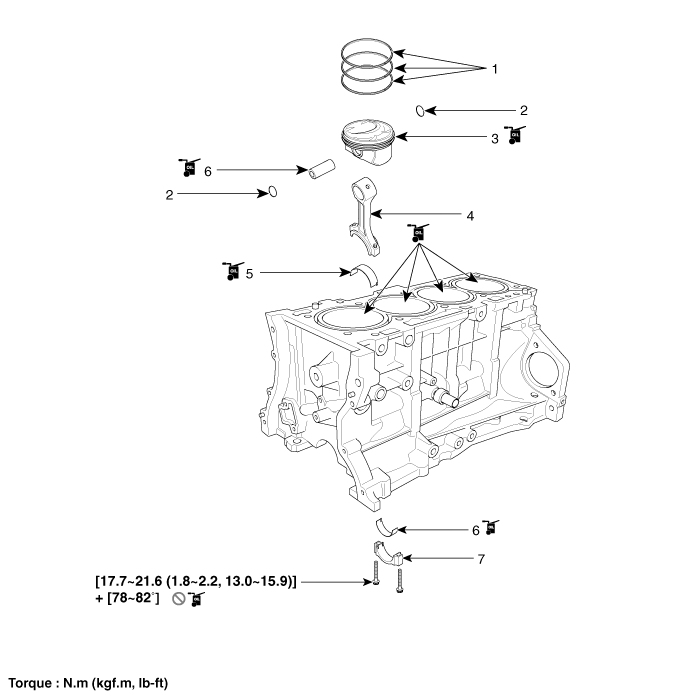

| 1. Piston ring 2. Snap ring 3. Piston 4. Connecting rod |
5. Connecting rod upper bearing 6. Connecting rod lower bearing 7. Connecting rod bearing cap |
1.
Install the oil jet (A).
Tightening torque :
24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)
2...
Cylinder Block Reassembly
Piston and Connecting Rod Disassembly
