Driver Door Mirror Switch
1.
Disconnect the negative battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front door")
3.

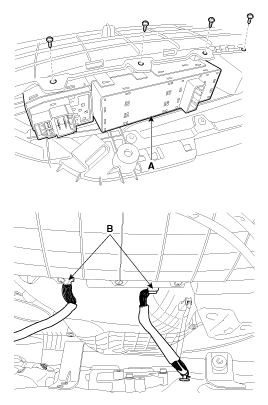

Remve the screws(Inside:4EA, outside:1EA) from door module (A) and connectors (B).

4.
Remove the driver door module (A) from front door trim.


Be careful not to damage the hook when removing the switch module.
Power Door Mirror Switch Circuit Diagram
...
Power Door Mirror Switch Installation
Driver Door Mirror Switch 1. Install the driver door module and connectors. 2. Install the front door trim....
