Kia Sorento: Tail Gate Adjustment - Exterior - Body (Interior and Exterior)Kia Sorento: Tail Gate Adjustment

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Tail Gate Adjustment

1.

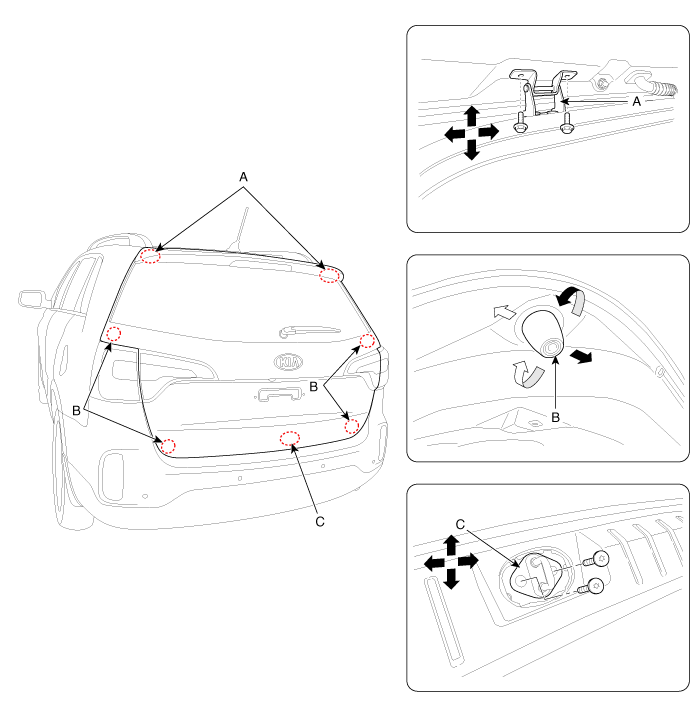

After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
2.
Adjust the tailgate height by turning the tailgate overslam bumpers (B).
3.
After loosening the tailgate striker (C) mounting bolts, adjust the tailgate striker by moving it up or down, or right or left.
