Kia Sorento: Power Seat Control Switch Inspection - Seat Electrical - Body Electrical SystemKia Sorento: Power Seat Control Switch Inspection

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Inspection

1.

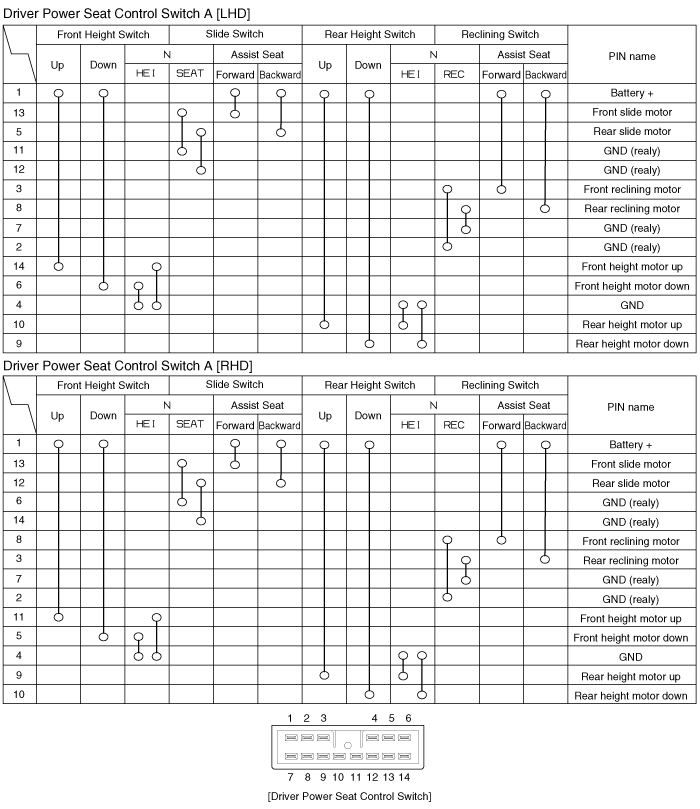

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Power Seat Motor Inspection
Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front seat") 2. With the batt...
Power Seat Control Switch Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the power seat control switch (A). (Refer to Body - "Front seat")...
