Kia Sorento: Rear Differential Carrier Component

Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier Component

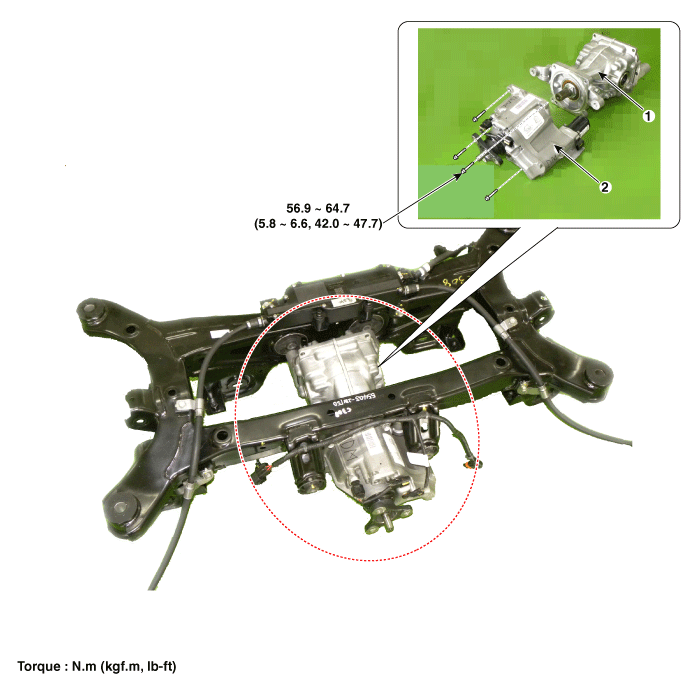

1. Rear Differential Carrier

2. Coupling Assembly

Differential Carrier Assembly

...

Rear Differential Carrier Removal

1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
