Kia Sorento: Rear Disc Brake Components

Kia Sorento (XM, 2011-2015) Service Manual / Brake System / Brake System / Rear Disc Brake Components

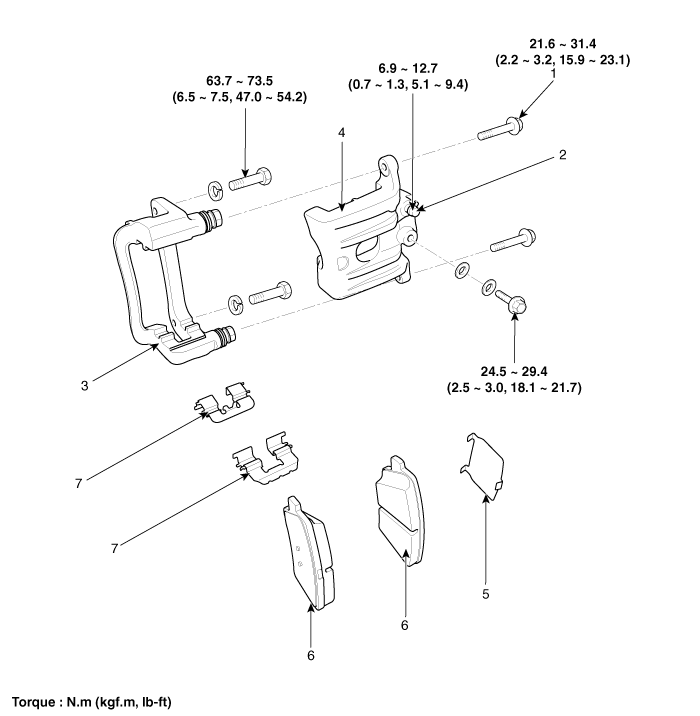

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body

5. Inner pad shim
6. Brake pad
7. Pad retainer

Front Disc Brake Installation

1. Installation is the reverse of removal. 2. Compress the piston into the caliper body using the SST (09581-11000). 3. ...

Rear Disc Brake Removal

1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2....
