Kia Sorento: Rear Door Components
Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Rear Door Components

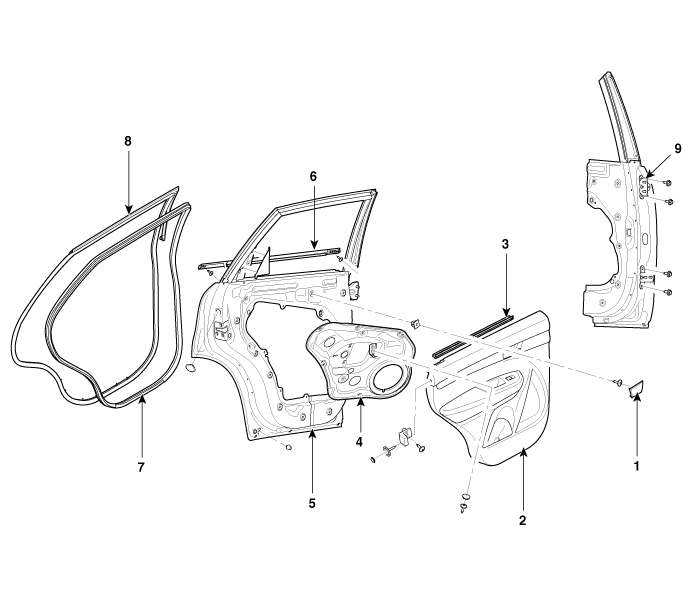

| 1. Door inside handle cap 2. Door trim 3. Door belt inner weatherstrip 4. Door module |
5. Door panel 6. Door belt weatherstrip 7. Door body side weatherstrip 8. Door side weatherstrip 9. Door hinge |

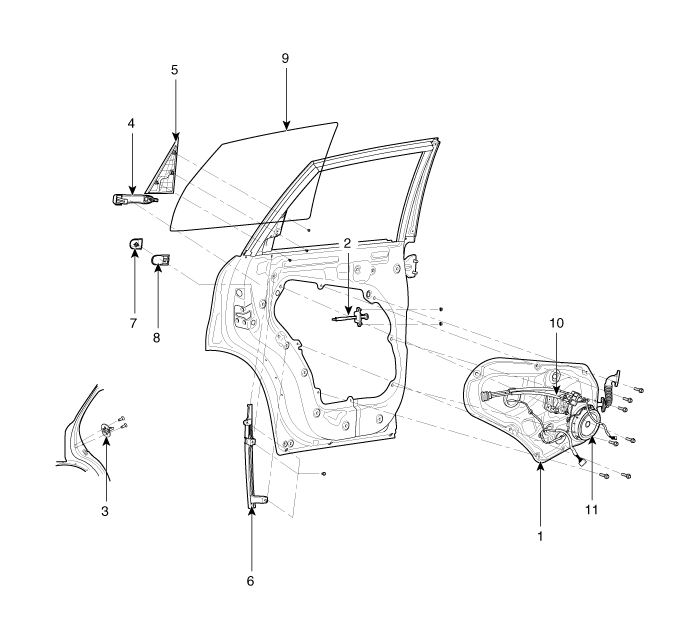

| 1. Door module 2. Door checker 3. Door Striker 4. Door outside handle 5. Door delta moulding 6. Door rear channel |
7. Door outside handle cover 8. Door outside handle pad 9. Window glass 10. Power window motor 11. Door speaker |
