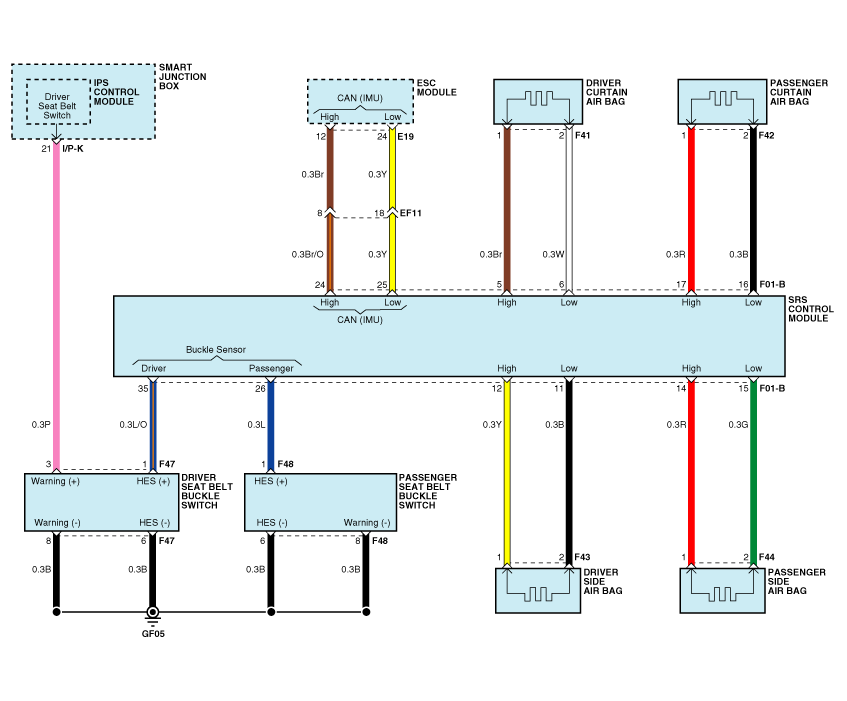

Kia Sorento: Circuit Diagram - SRSCM - RestraintKia Sorento: Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Restraint / SRSCM / Circuit Diagram

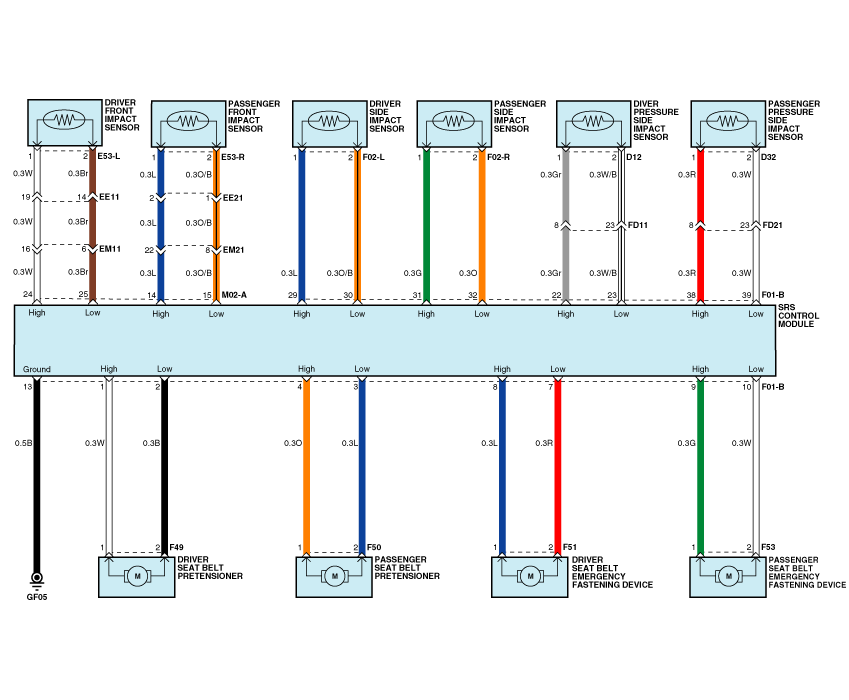

Circuit Diagram (2)

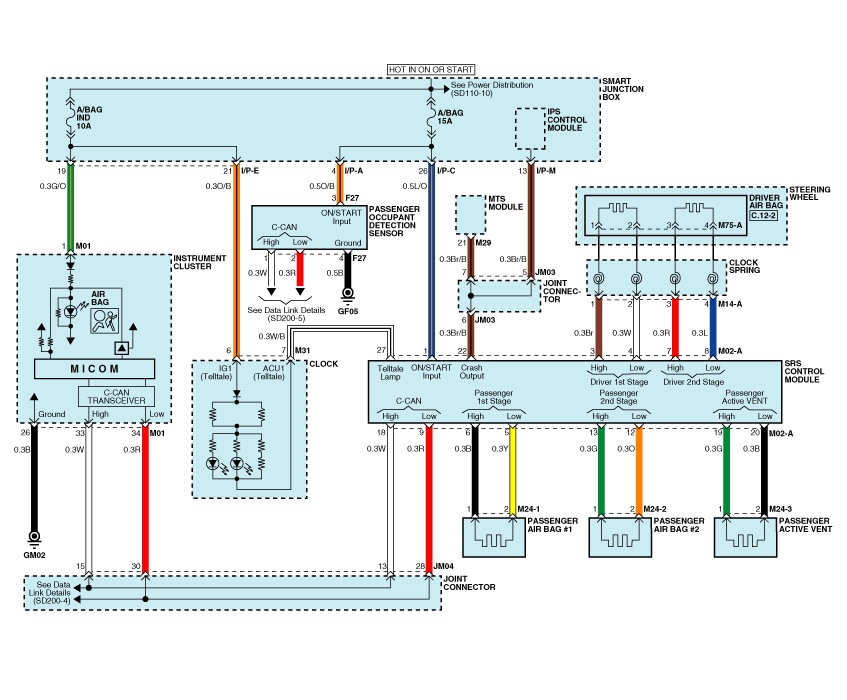

Circuit Diagram (3)

Occupant Detection system (ODS) Installation
1. Install the ODS equipped seat cushion assembly. (Refer to the Body group- Seat) 2. Install the front passenger seat assembly. (Refer to th...
SRSCM Connector terminal
Pin Function (Connector A) Pin Function (Connector B) 1 Ignition 1 Seat belt pretensioner [Driver] High 2 - 2 ...
See also:

Main components of the Occupant Detection System (ODS)
Weight sensor mat: A delicate weight-sensing device integrated inside the front passenger seat cushion matrix. Electronic Control Unit: A ...

Battery Components
1. Battery insulation pad 2. Battery 3. Battery tray 4. Battery mounting bracket ...
