Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Rear Driveshaft Assembly / Rear Driveshaft Components

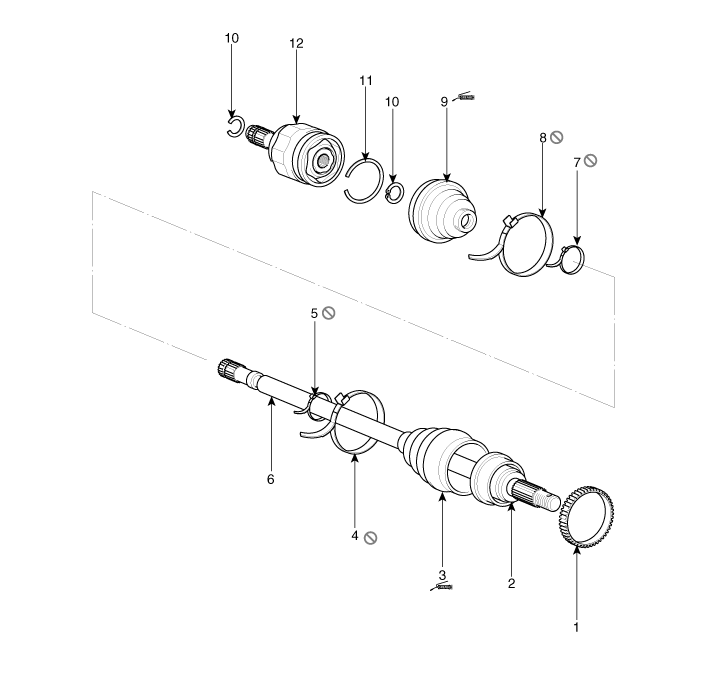

1. Tone wheel
2. BJ joint
3. BJ boot
4. BJ boot big part band
5. BJ boot small part band
6. Shaft
7. TJ boot small part band
8. TJ boot big part band
9. TJ boot
10. Snap ring
11. Circlip
12. TJ assembly

Rear Driveshaft Assembly
...
Rear Driveshaft Removal and Installation
1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
