Kia Sorento: Components Location
Kia Sorento (XM, 2011-2015) Service Manual / Emission Control System / Components Location

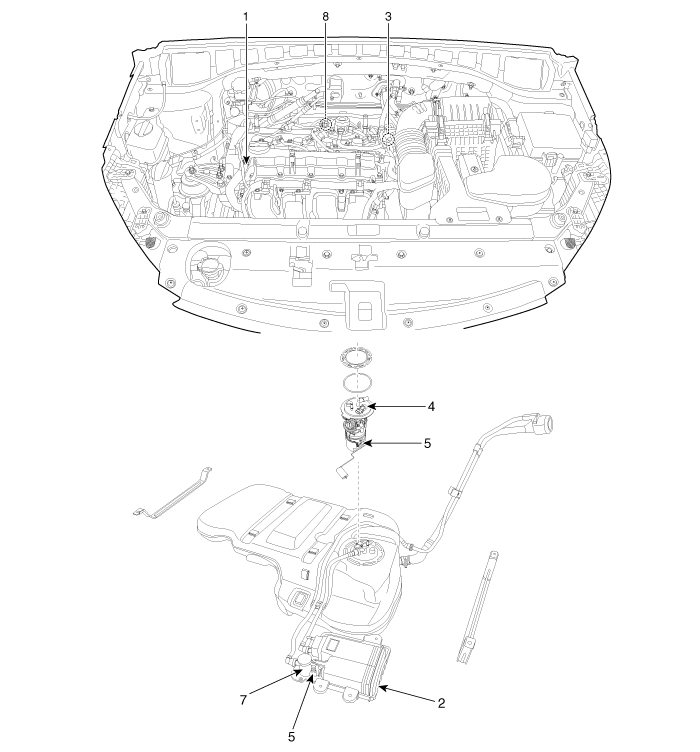

| 1. PCV Valve 2. Canister 3. Purge Control Solenoid Valve (PCSV) 4. Fuel Tank Pressure Sensor (FTPS) |
5. Canister Close Valve (CCV) 6. Fuel Level Sender (FLS) 7. Fuel Tank Air Filter 8. Catalytic Converter (WCC+UCC) |
| 1. PCV Valve |
2. Canister |
|
|
|
| 3. Purge Control Solenoid Valve (PCSV) |
4. Fuel Tank Pressure Sensor (FTPS) 6. Fuel Level Sender (FLS) |
|
|
|
| 5. Canister Close Valve (CCV) 7. Fuel Tank Air Filter |
8. Catalytic Converter (WCC) |
|
|
|
| 8. Catalytic Converter (UCC) |
|
|
|
