Kia Sorento: Shift Cable Components

Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Cable Components

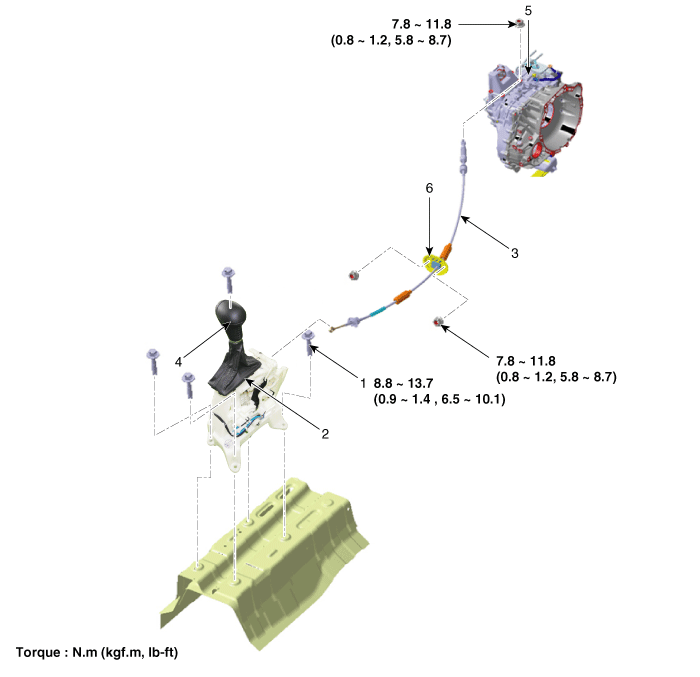

1. Shift lever mounting bolt
2. Shift lever assembly
3. Shift cable assembly

4. Shift lever knob & boots assembly
5. Manual control lever
6. Retainer

Shift Lever Installation

1. Install in the reverse order of removal. Set shift lever and inhibitor switch man...

Shift Cable Removal

1. Remove the floor console. (Refer to Body - "Floor console") 2. Remove the air duct. 3. Disconnect the...
