Kia Sorento: Shift Lever Removal - Automatic Transaxle Control System - Automatic Transaxle SystemKia Sorento: Shift Lever Removal

Kia Sorento (XM, 2011-2015) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Lever Removal

1.
Remove the floor console.
(Refer to Body - "Floor console")
2.
Remove the air duct.
3.
Disconnect the sports mode connector (A).

4.
Disconnect the shift cable (A).

5.

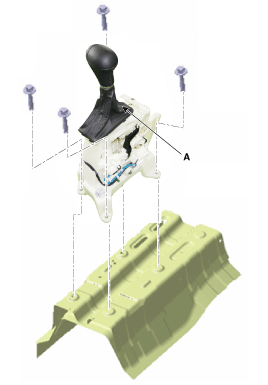

Remove the shift lever assembly (A) by removing the bolts (C-4ea).

Tightening torque :
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Shift Lever Components
1. Shift lever mounting bolt 2. Shift lever assembly 3. Shift cable assembly 4. Shift lever knob & boots assembly 5. Manual control lever 6. Retainer...
Shift Lever Installation
1. Install in the reverse order of removal.    Set shift lever and inhibitor switch man...
