Kia Sorento: Side Body C

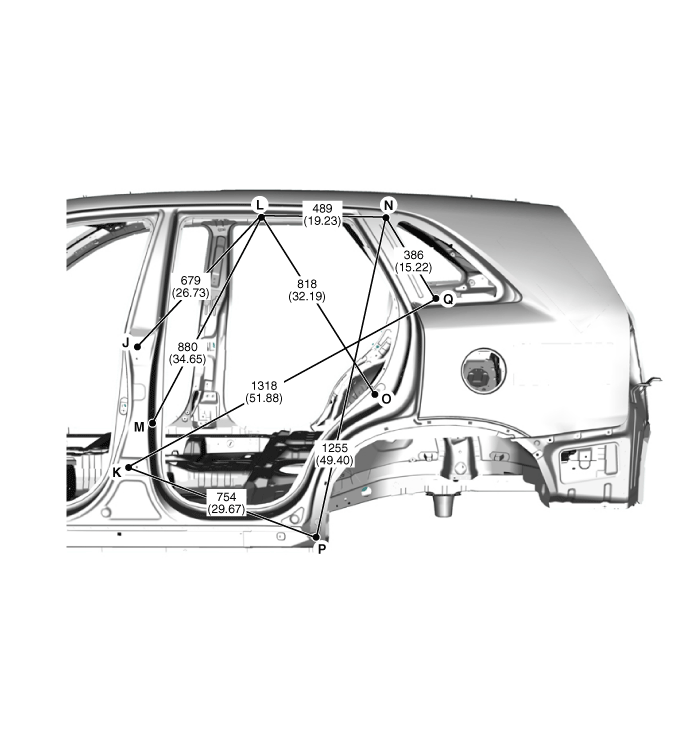

| * These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
| Front side member tooling hole (Ø8.2) |
Fender apron upper panel tooling hole (Ø8) |
Front door upper hinge mounting hole (Ø13) |
|
|
|
|
| Front door lower hinge mounting hole (Ø13) |
Fender panel mounting hole (Ø6.6) |
Side outer panel notch |
|
|
|
|
| Side outer panel notch |
Side outer panel notch |
Front door switch mounting hole (Ø10) |
|
|
|
|
| Rear door upper hinge mounting hole (Ø13) |
Rear door lower hinge mounting hole (Ø13) |
Side outer panel notch |
|
|
|
|
| Side outer panel notch |
Quarter fixed glass mounting hole (Ø6) |
Rear door switch mounting hole (Ø10) |
|
|
|
|
| Side sill moulding mounting hole (12X12) |
Quarter fixed glass mounting notch |
Rear bumper mounting hole (Ø12) |
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ]...
