Kia Sorento: Side Body B

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Body Dimensions / Side Body B

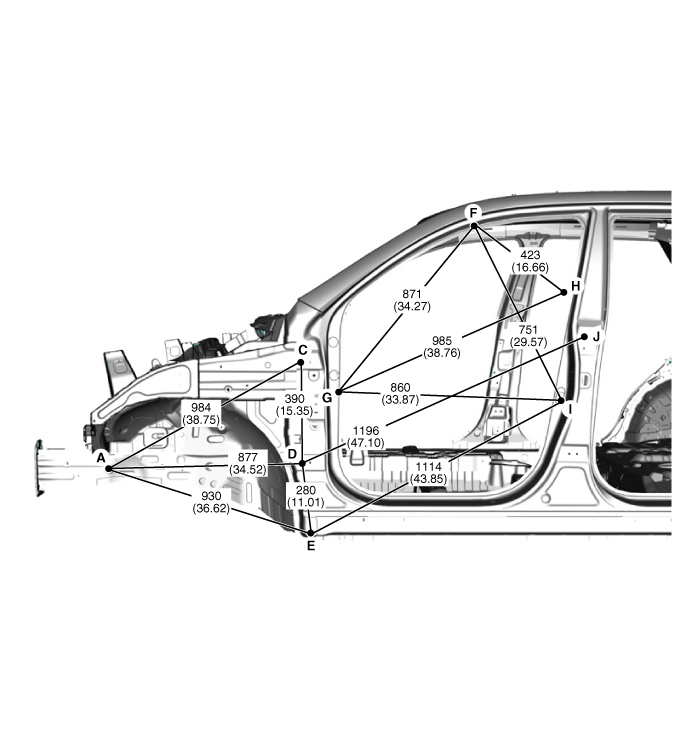

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]...

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front side member tooli...
