Kia Sorento: Starter Components - Starting System - Engine Electrical SystemKia Sorento: Starter Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Starting System / Starter Components

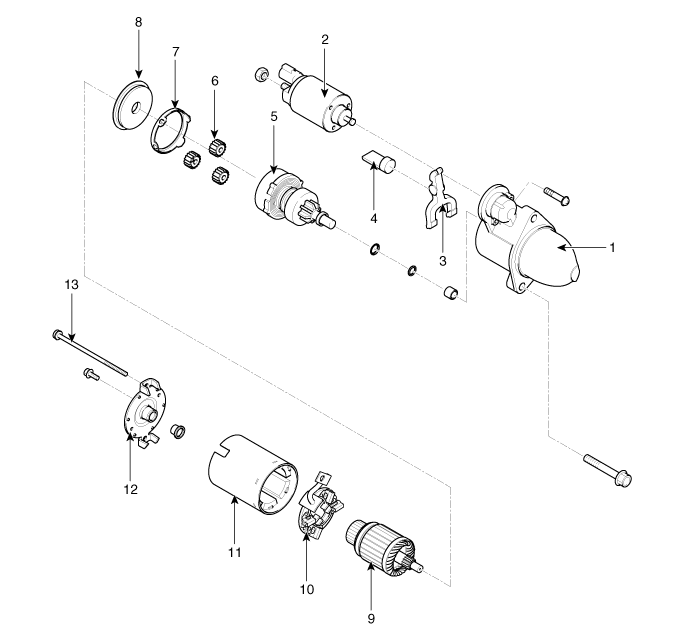

1. Front housing
2. Starter solenoid assembly
3. Lever
4. Lever packing
5. Planet shaft assembly
6. Planetary gear assembly
7. Packing
8. Shield
9. Amature assembly
10. Brush holder assembly
11. Yoke assembly
12. Rear housing
13. Through bolt

Starter Specification
Starter Item Specification Rated voltage 12 V, 1.2 kW The number of pinion teeth 11 Performance [No-load, 11 V] Ampere ...
Starter Circuit Diagram
...
