Kia Sorento: Telemetics Unit (TMU) Component - MTS System - Body Electrical SystemKia Sorento: Telemetics Unit (TMU) Component

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / MTS System / Telemetics Unit (TMU) Component

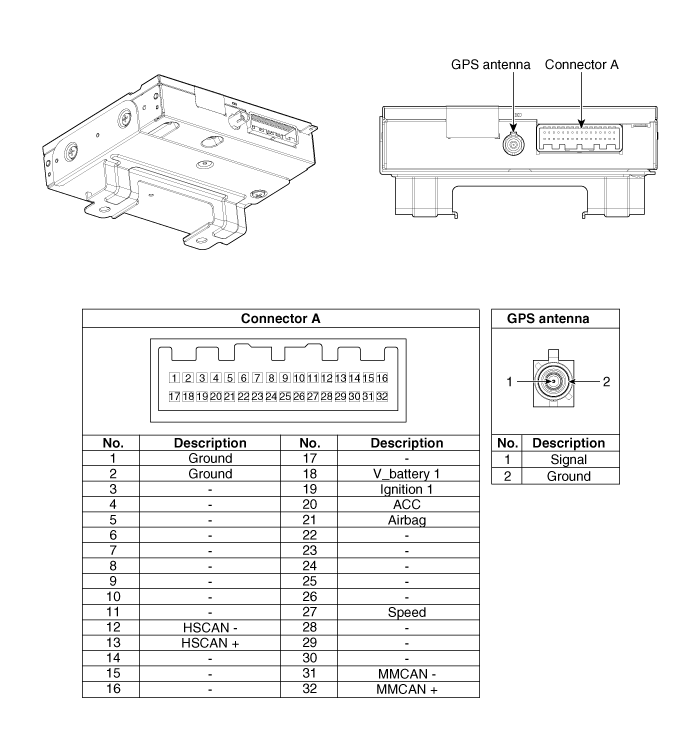

Connector Pin Specification
No.
Pin Name
Type
From
To
Description (Wiring Spec.)
1
GND
DC Ground
TMU
Battery
Connected to battery ground
2
GND
DC Ground
TMU
Battery
Connected to battery ground
3
-
-
-
-
-
4
-
-
-
-
-
5
-
-
-
-
-
6
-
-
-
-
-
7
-
-
-
-
-
8
-
-
-
-
-
9
-
-
-
-
-
10
-
-
-
-
-
11
-
-
-
-
-
12
HS CAN (-)
Data I/O
BUS
BUS
High Speed CAN bus low
13
HS CAN (+)
Data I/O
BUS
BUS
High Speed CAN bus high
14
-
-
-
-
-
15
-
-
-
-
-
16
-
-
-
-
-
17
-
-
-
-
-
18
V battery 1
DC Input
Battery
TMU
DC level input from battery Supply power to TMU
19
Ignition 1
Data Input
Junction Box
TMU
Vehicle Key mode status
20
ACC
Data Input
Junction Box
TMU
Vehicle Key mode status
21
Airbag
Data Input
ACU
TMU
Airbag status data from ACU
22
-
-
-
-
-
23
-
-
-
-
-
24
-
-
-
-
-
25
-
-
-
-
-
26
-
-
-
-
-
27
Speed
Data Input
-
TMU
GPS Calibration (UVO ONLY)
28
-
-
-
-
-
29
-
-
-
-
-
30
-
-
-
-
-
31
MM CAN (-)
Data I/O
BUS
BUS
Low Speed CAN bus low
32
MM CAN (+)
Data I/O
BUS
BUS
Low Speed CAN bus high
